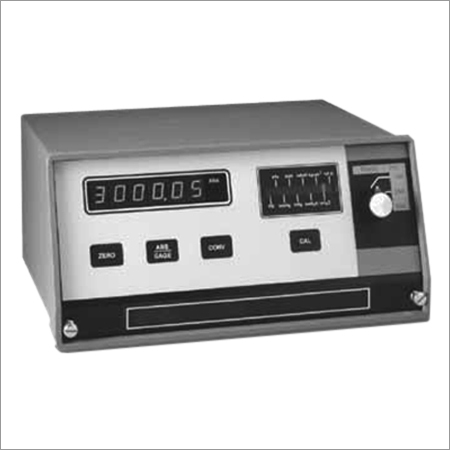

Digital Pressure Indicator

Digital Pressure Indicator
Digital Pressure Indicator
Product Code : UPS3000/3110/3210
Brand Name : PACE ENGINEERS
Product Description

Digital Pressure Indicator

Digital Pressure Indicator has a rugged construction and is considered as the most cost-effective, quickest, calibration solution available in the market. It is utilized for use in the manufacture, calibration or test of devices which are sensitive to pressure. A foil strain gauge sensor which is exclusively bonded has a microprocessor-based electronic circuit for for life long stability. furthermore, it is housed in a robust steel enclosure, in which the indicator remains lightweight and compact and allow balanced and portable use. Also, the Digital Pressure Indicator has a self -contained battery option for battery with a guarantees more than six hours of convenient operation.

Features:

  • Ultra compact and light weight
  • Best in class pressure measurement with zero tolerance
  • Precision pressure adjust vernier for accurate pressure calibration

Further Details:

  • Gauge, absolute, or gauge/absolute selectable
  • 10 selectable engineering units
  • Optional rechargeable battery
  • Durable 16 gauge mild steel case
  • Tabletop, panel or rack mount
  • Optional Min/Max, peak hold and freeze mode

UPS3000 Model Numbering Guide

  • Power
  • A = 115 VAC 50/60 Hz
  • B = Battery operation & 115 VAC 50/60 Hz (add 37500)
  • C = 230 VAC 50/60 Hz
  • D = Battery operation & 220 VAC 50/60 Hz (add 37500) range
  • A = 5000/2500/1000 psi
  • B = 1000/500/200 psi
  • C = 500/250/100 psi
  • D = 100/50/20 psi*
  • E = 50/25/10 psi*
  • F = 2000/1000/400 psi
  • G = 10,000/5000/2000 psi**
  • H = 20,000/10,000/4000 psi**
  • J = 15/7.5/3 psig**
  • K = 30,000/15,000/6000 psi calibration modes
  • A = Gauge only
  • B = Absolute only
  • C = Gauge or Absolute, switch-selectable
  • Determine model configuration before ordering
  • Example: UPS3000ADA = UPS3000 (A)115 VAC 50/60 Hz,
  • (D)100/50/20 psi, (A) gauge only

Standard Features:

Portable table top, panel mount, or 19 inch rack-mount version available

Available in 10 sets of ranges: 30,000/15,000/6000 psi, 20,000/10,000/4,000 psi, 10,000/5000/2000 psi, 5000/2500/1000 psi, 000/ 1000/400 psi, 50/135/10 psi, 1000/500/200 ps1, 500/250/ 100 psi, 00/50/20 psi, 15/7.5/3 psi

  • Three independent selectable ranges in each instrument
  • +0.05% F.S. accuracy of each independent selectable range
  • 16 gauge painted mild steel case
  • No Potentiometers or analog adjustments for calibration
  • Pus button zero
  • 0.02% F.S. dis lay resolution typical for each range
  • Absolute andlor gauge switch selectable calibration modes
  • Multi-conversion unit with 10 conversions standard: inHZO, rnrnH , ian, kPa, BAR, rnBAR, crnHZO, Kg/crn2, and 0%) F.S.

Technical Specifications:

  • Available Calibration Modes:
    • Gauge, absolute, or gauge and absolute switch-selectable
  • Overall Accuracy:
    • +0.05% F.S. maximum each ran e. Accuracy statement includes all effects of linearity, hysteresis, repeatability and ambient temperature.
  • Pressure Media:
    • Any media compatible with 17-4PH stainless steel
  • Pressure Connection:
    • Pressure fitting: 7/ 16-20UNF-2A: 37° flare; AN-4 20,000 psi unit and 30,000 psi unit;
    • Autoclave AE F250-C

Overpressure Capability:

  • 750% on low range
  • 300% on mid range
  • 150% on hi h range

Numerical pressure Display:

  • Digital type: High intensity, red LED, 0.43 in.
  • high Active digits: Five full decades
  • Polarity indication: ”-” sign
  • Pressure to Digital Conversion

Conversion rate: Data updated at the rate of 12 times per second, nominal Display

resolution: Nominally 0.02% of F.S for each pressure range

Input Voltage:

115 or 230 VAC,+10%, 50/60 Hz voltage selected Via transformer taps

Power Consumption:

8 watts, typical

Mounting Styles:

Table top with rubber feet or panel mounted with adapter kit

Construction:

Single piece outer case with slide out drawer

Case Material:

16 gauge, mild steel with textured finish, baked epoxy enamel paint

Multi-Conversion

10 units can be stepped through at the touch of a button. psi, kPa, mmH , BAR, mBAR, inHG, cmHZO,K /cm2, inH2O, and % F .S. Are included. Replaces analog pressure display

Weight:

UPS 3000: Approximately 13 lb (5.8 kg)

Peak Hold:

Last highest pressure reading stored in memory and recalled at the touch of a button.

Calibrates burst discs and relief valves

Freeze Mode:

External switch contact, change of state, freezes display reading for three seconds. Calibrates pressure switches

Battery:

Self-contained rechargeable battery provides a minimum of six hours of completely portable usage. May be operated or recharged by connecting the power cord to 115 AC.

Handle, power switch, and low battery indicator included with this option. Analog display not included with this option. Also not available in rack-mount models

Outputs:

Analog: 4-20 mA, 0-10 VDC, 0-5 VDC

Digital : Parallel BCD, 20 mA loop, RS-232 simplex output

Min/Max:

Highest and lowest pressure readings stored in memory and reca led at the touch of a button

Ordering code

UPS3000(-)(-)(-)

Power

  • A = 115 VAC 50/60 Hz, B = Battery operation & 115 VAC 50/60 Hz
  • C = 230 VAC 50/60 Hz, D = Battery operation & 220 VAC 50/60

Range

  • A = 5000/2500/1000 psi, B = 1000/500/200 psi, C = 500/250/100 psi,
  • D = 100/50/20 psi", E = 50/25/10 psi" F = 2000/1000/400 psi, l
  • G = 10,000/5000/2000 psi", H = 20,000/10,000/4000 ps’” (1), I
  • I = 15/7.5/3 psig", K = 30,000/15,000/6000 ps** (1) l

Calibration Modes

A = Gauge only, B = Absolute only, C = Gauge or Absolute, switch-selectable

Optional Accessories

  • 57775 Peak hold (A and B calibration modes only)
  • 57798 Peak hold (C calibration mode only)
  • 57778 Freeze mode
  • 57785 0-10 VDC/4-20 mA analog output (AC only models)
  • 57790 Min/Max feature (A and B calibration modes only)
  • 57796 Min/Max feature (C calibration mode only)
